Quick Reference Guide - Switches and LEDs

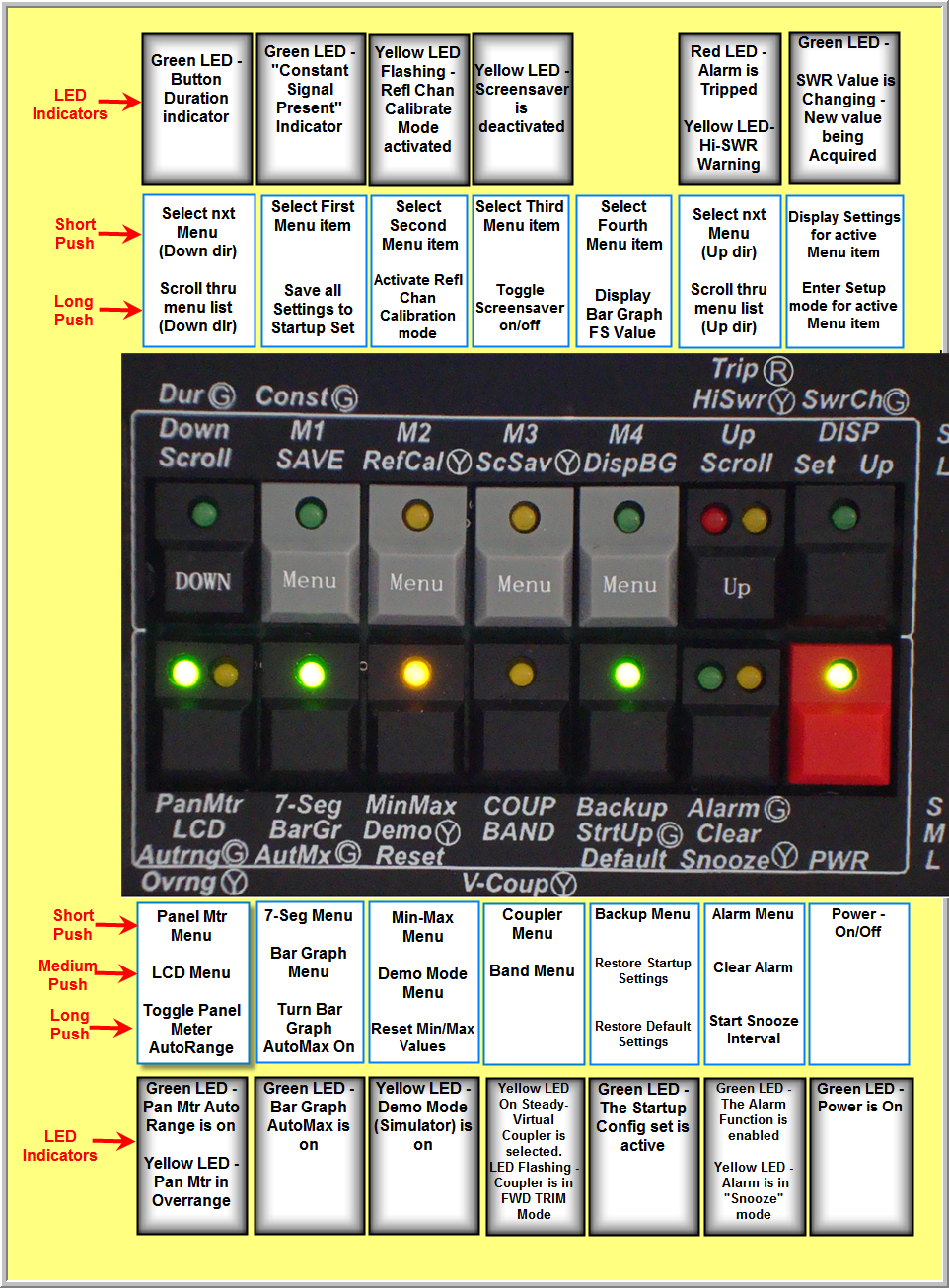

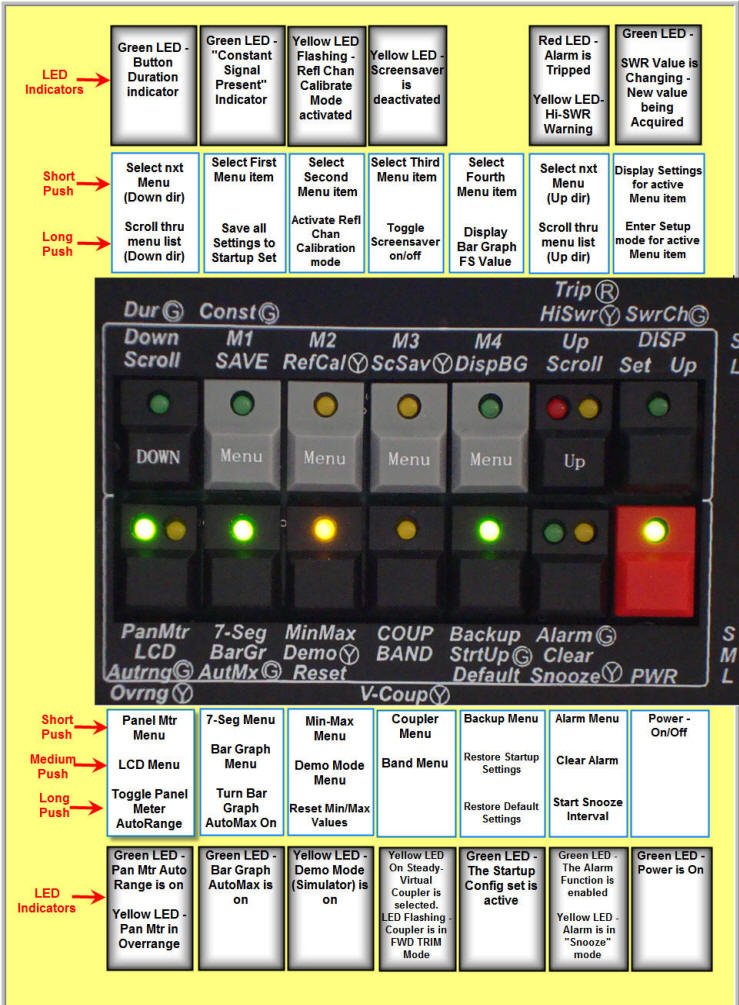

The reference guide below shows the functions of all of the front panel switches and LEDs. It is recommended that you read the Programming MB-1 overview first.



Power-Up Sequences

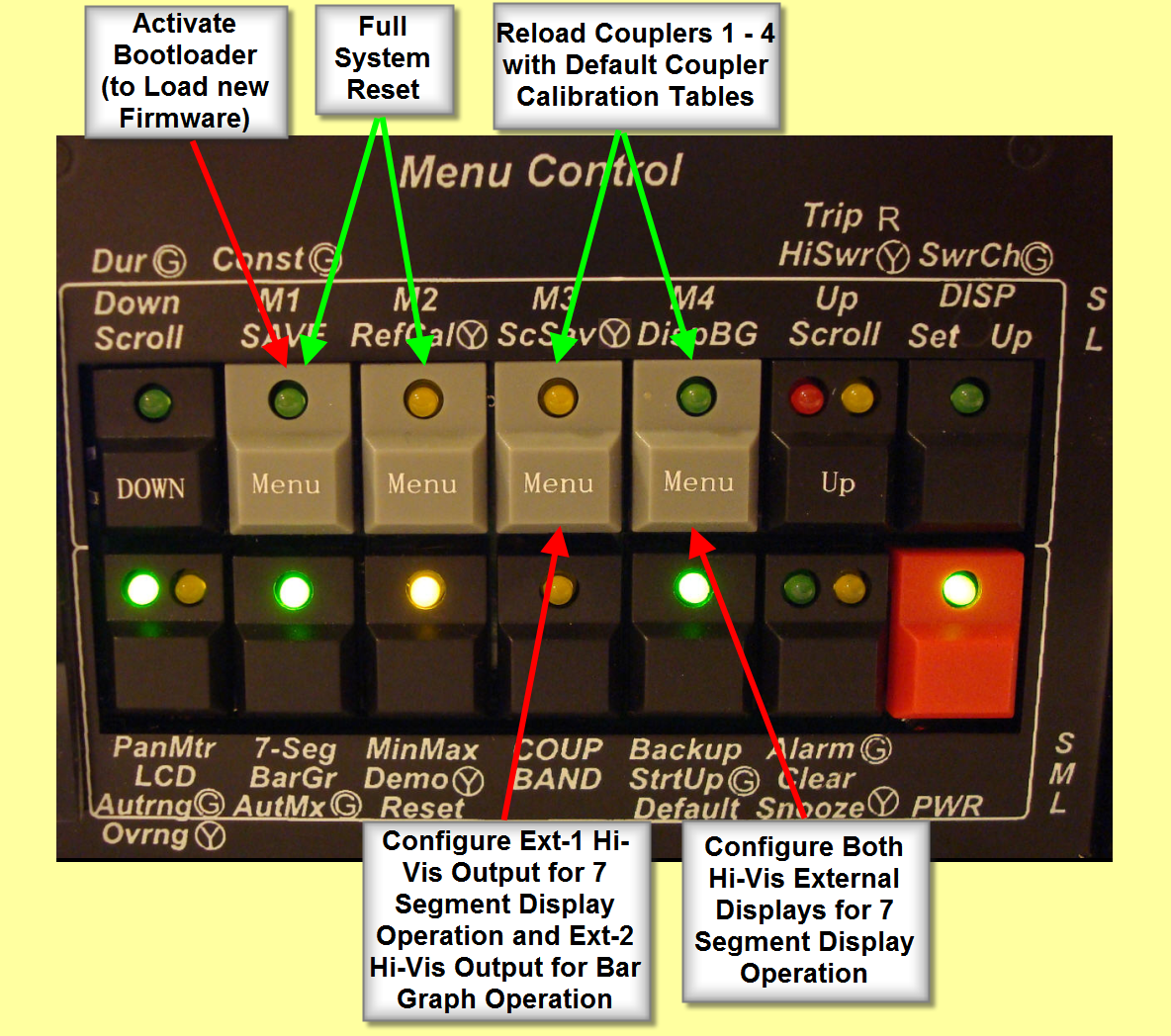

While powering up MB-1, combinations of the four menu switches M1M4 may be pressed to perform various configuration changes as shown below.


Reference Guide - Hi Res Images for Printing

Download to Print (Right click and "Save Target As")
